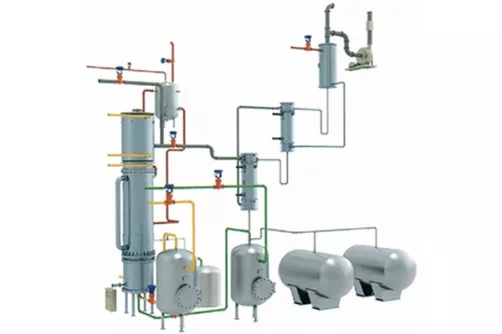

Combined type two-in-one hydrochloric acid synthesis device with steam generation


Technical principle:

Hydrogen and chlorine combustion synthesis hydrogen chloride. Use reaction heat byproduct steam for other process at the same time.



Technical description:

Hydrogen and chlorine enter into HCL synthesis furnace and burn. After cooling the product HCL gas, send the HCL gas to the downstream process or absorption system to product high purity HCL. The high temperature zone use boiler water to transfer heat to produce hot water through flash tank to output saturated steam of different pressure, and send to other processes outside the battery limit.



Technical characteristics:

1.DCS automatic control, reliable and efficient safe interlock control system.

2.Resistance of high temperature and pressure, high thermal efficiency.

3.Delivery pressure of HCL: 10kpaG~0.3MpaG according to requirements.

4.Byproduct steam: 0.4~0.8MpaG, according to requirements.

5.Adopt automatic sparking mode instead of manual sparking.
