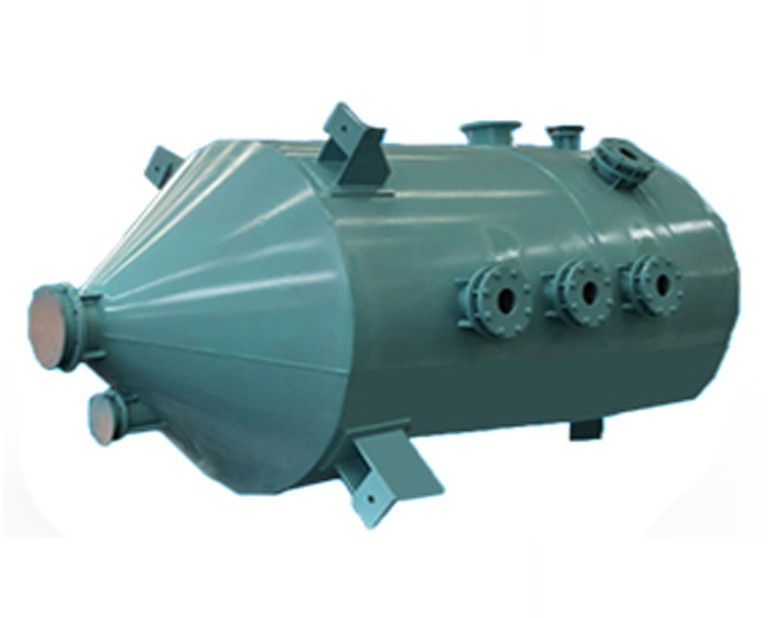

The graphite materials are often applied in evaporation conditions, especially used as flashing separation tank and materials collection tank thanks to their extraordinary anticorrosive, thermal resistance and anti thermal shocking capacities, which could endure the ultimate vacuum and a higher temperature, anticorrosion and pressure bearing compared with other materials.
Range of Application
The graphite materials are often applied in evaporation conditions, especially used as flashing separation tank and materials collection tank thanks to their extraordinary anticorrosive, thermal resistance and anti thermal shocking capacities, which could endure the ultimate vacuum and a higher temperature, anticorrosion and pressure bearing compared with other materials.
Performance features
* High resistance to thermal shocking
* Excellent heat transfer and thermal expansion coefficient
* Easy for maintenance
* Working life over 10 years
* Volume could reach 50m3
* Max endurable temperature 200℃
* Anti-abrasion after surface treatment
* Carbon fiber reinforced to improve pressure bearing capacity
* Customized design
Technical Characteristic
Name | Process side |
Design pressure | -0.1~0.6MPa |
Design Temp. | 200℃ |
Medium | Corrosive medium |
Volume | 500L ~ 60000L |
